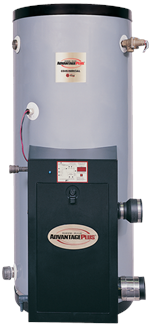

AdvantagePlus™

3-year limited tank

Features:

• 316L stainless steel tank construction (requires no anode rods).
• No chimney required - vents up to 40 feet using 3" schedule 40 PVC, CPVC or ABS pipe - direct vent using plastic pipe.
• Thermal efficiency of 95% dramatically reduces operating costs.
• 85 equivalent feet of vent length.
• Low NOx emissions. Meets SCAQMD Rule 1146.2.
• High impact plastic jacket eliminates dents.
• 2" of non-CFC, polyurethane foam insulation.
• Less than 1/2 degree per hour heat loss (R17).
• Corrosion resistant, high efficiency 90/10 cupronickel heat exchanger.
• Self-diagnostic electronic control with digital readout for water temperature, set point and differential.
• Removable front cover allows easy access to equipment (24" service clearance recommended).
• Temperature range from 70ºF to 160ºF (maximum temperature setting of 180ºF available on HE45-160 and HE45-199 booster models only).
• Zero clearance to all combustible surfaces.
• Factory installed AGA/ASME rated T&P relief valve.
